Product Details:
Payment & Shipping Terms:
|

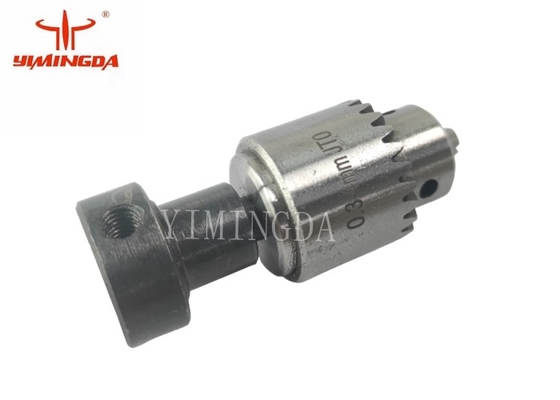

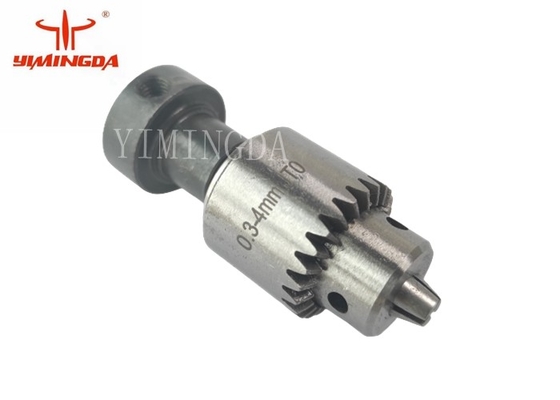

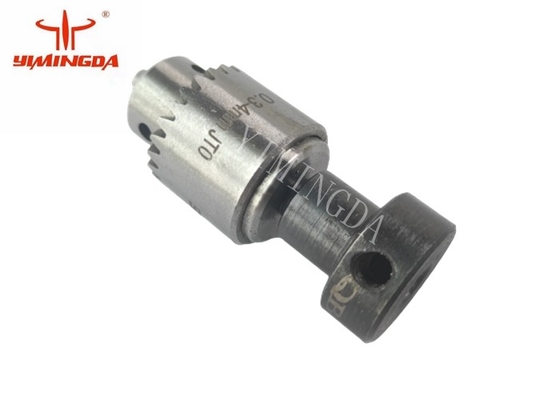

| Product Name: | CH08-03-09 DRILL BIT WITH CHUCK SHAFT | Application: | For Yin 1707J / 2307J / 2007J Machine Parts |
|---|---|---|---|
| Weight: | 0.1 Kg/pc | Packing: | 1 Set / Bag |
| Type: | Textile Auto Cutter Machine Parts | Specific: | CH08-03-09 Chuck Shaft With Drill Bit 4mm For Yin 7J Auto Cutter Machine Parts |
| Highlight: | CH08-03-09,Chuck Shaft Yin Cutter Parts,Auto Cutter Machine Parts |
||
Specifications:
| Suitable auto-cutter Model | For YIN / TAKATORI Cutter Parts / Textile CUTTER Machine Parts |
| Part Number | CH08-03-09 & 4M/ M(0.4-4) |
| Description | CHUCK DRILL BIT & CHUCK SHAFT FOR YIN 7J 7N CUTTER MACHINE |
| Weight | 0.10kg/pcs |
| Delivery Time | In stock |
| Payment Terms | T/T , Paypal , Western Union , Money Gram , LC |
| CDQSA20-WE31J099 | D-120B | J20B-NS9 |
| CDU 20-80 | CDQ SB20-110DCM | NF08-02-06W2.0 |
| NG08-02-25W3.0 | 604ZZ | NG08-01-10 |
| NG08-01-11 | 6902ZZ | 6815ZZ |
| NF08-02-06W2.5 | NF08-02-11 | NF08-02-10 |
| CH08-04-15H3 | CH08-02-17W1.6 | CH08-01-44 |
| Machine | Part Number | Blade Size |
|
Yin |
CH08-02-25W1.6G6 | 132 * 8 * 1.6mm |
| CH08-02-25W2.0H3 | 162 * 8 *2.0mm | |
| CH08-02-25W2.5H3 | 162 * 8 * 2.5mm | |
| -- | 69 * 6 * 1.0mm | |
| -- | 200 * 8 * 2.5mm |
| Machine | Part Number | Blade Size |
| Gerber | 73338000 | 202 * 6.3 * 2.12mm |
| 85878000 | 206 * 7.9 *1.93mm | |
| 54782009 | 195 * 7.9 * 1.96mm | |
| 21261011 | 255 * 7.9 * 2.36mm | |
| 22175000 | 255 * 8 * 1.96mm |
| Machine | Part Number | Blade Size |
| 801220 | 88 * 5.5 * 1.5mm | |
| 801214 | 296 * 7 * 2mm | |
| 801222 | 360 * 7 * 2.4mm | |
| 801217 | 360 * 8.5 * 3mm | |
| 705940/801274 | 305 * 8.5 * 2.4mm | |
| 705939/801269 | 364 * 8.5 * 2.4mm |
Below Other Cutter Brand available parts from Yimingda as your reference:
|
Suitable for Machine brand |
Model number |
Availability |
|
Gerber |
GT7250, S7200 , GT5250, S5200 , GT3250, S3200 , XLC7000 , PARAGON HX / VX / LX, GTXL, Z7, Spreader SY101, XLS125, Plotter Ap series, Infinity |
Almost All parts available |
|
YIN |
HY- all series Cutter, Spreader SM Series ; Plotter |
All parts available |
|
|
VT2500, FX, VT5000, VT7000, MP6, MP9, M88, MH8, Q25, Q50, Q80, IX5, IX6, IX9 , MX , MX9 ; Alys Plotter |
Cutting Blade , Bristle Block , Sharpening Belt , Grinding wheel (Grind Stone) and Maintenance kits |
|
Bullmer |
All Cutter machine models (D8001 , D8002 , E80 , XL7501..) & Spreader Machine |
Cutting Blade, Bristle Block , Grind stone ( Grinding Wheel) and some spare parts |
|
Kuris |
All machine models |
Cutting Blade, Gringding Stone , Bristle & Some Spare Parts |
|
Investronica |
All Cutter Machine Model (Investronica SC4 / CV040 , SC3 / CV030 , SC7 / CV070 , SC2 / CV020) |
Cutting Blade, Bristle Block, Grind Stone (Some Spare Parts for the model) |
|
FK |
All Cutter machine models |
Cutting Blade, Bristle Block and Grind Stone |
| IMA | All Cutter Machine Model | Cutting Blade, Bristle Block and Grind Stone and some spare parts |
| Morgan | All Cutter Machine Model (NEXT 2) | Cutting Blade , Bristle Block , Sharpening Belt (Some Spare Parts for the model) |
| Oshima | All Cutter Machine Model & Spreader | Cutting Blade, Bristle Block and Grind Stone and some spare parts |
| Pathfinder | All Cutter Machine Model | Cutting Blade and and Grind Stone |
| Orox | All Cutter Machine Model | Cutting Blade, Bristle Block and Grind Stone |
| Serkon | All Cutter Machine Model | Cutting Blade, Bristle Block and Grind Stone |
