Product Details:
Payment & Shipping Terms:
|

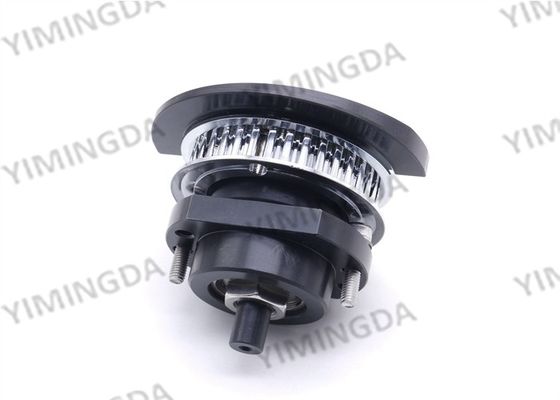

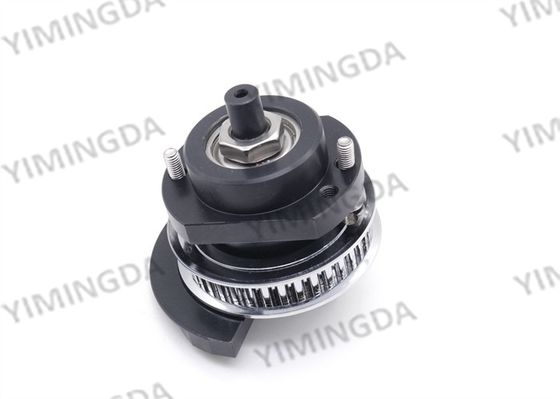

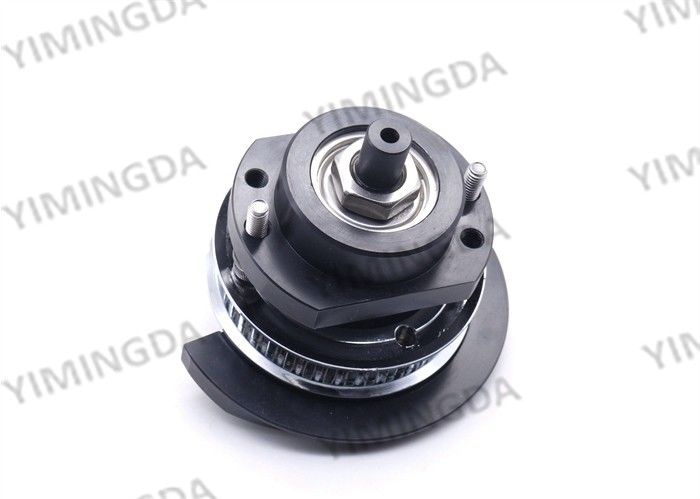

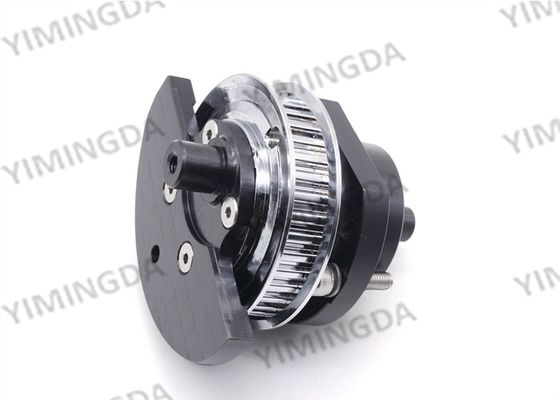

| Product Name: | 98584000 HOUSING CRANK ASSY | Application: | For Paragon VX/HX Cutting Machine |
|---|---|---|---|
| Packing: | 1pcs/bag | Type: | Textile Auto Cutter Machine Parts |
| Shipping Method: | Int’l Express Courier | Brand: | YIMINGDA |
| Highlight: | Gerber Paragon Assy Housing Crank,Paragon Cutter Assy Housing Crank,Gerber Paragon VX HX Cutter Parts |
||
Specifications:
| Suitable auto-cutter Model | For Paragon VX/HX Cutting Machine parts |
| Part no. | 98584000 |
| Description | ASSY,HOUSING,CRANK,DIRECT DRIVE,HV |
| Delivery Time | Within 3-5 DAYS |
| Payment Terms | T/T , Paypal , Western Union , Money Gram , LC |
| Machine | Part Number | Blade Size |
|
GT |
73335000 | 202 * 6.3 * 2.12mm |
| 85878000 | 206 * 7.9 *1.93mm | |
| 54782009 | 195 * 7.9 * 1.96mm | |
| 21261011 | 255 * 7.9 * 2.36mm | |
| 22175000 | 255 * 8 * 1.96mm | |
| 22941000 | 255 * 7.9 * 2.36mm | |
| 78798006 | 255 * 8.08 * 2.36mm |
| Machine | Part Number | Blade Size |
|
Yin |
CH08-02-25W1.6G6 | 132 * 8 * 1.6mm |
| CH08-02-25W2.0H3 | 162 * 8 *2.0mm | |
| CH08-02-25W2.5H3 | 162 * 8 * 2.5mm | |
| -- | 69 * 6 * 1.0mm | |
| -- | 200 * 8 * 2.5 mm |
| Machine | Part Number | Blade Size |
|
Vector |
801220 | 88 * 5.5 * 1.5mm |
| 801214 | 296 * 7 * 2mm | |
| 801222 | 360 * 7 * 2.4mm | |
| 801217 | 360 * 8.5 * 3mm | |
| 705940/801274 | 305 * 8.5 * 2.4mm | |
| 705939/801269 | 364 * 8.5 * 2.4mm |
| Machine | Part Number | Blade Size |
|
Bullmer |
105935 | 223 * 8 *2.5mm |
| 104450 | 223 * 10 * 2.5mm | |
| 108448 | 95 * 6 * 2mm | |
| 105934 | 169 * 6 * 2mm |
Spare parts and consumables suitable
For GT Auto-cutter: GT7250 / S5250 / S7200 / S5200 / GTXL / XLC7000 / Z7 / Paragon VX
For Spreader, Plotter:INFINITY ；INFINITY-II ；INFINITY-AE2 ；AP100 SERIES ；AP300-AP360 ；S91 ；SY101 ；XLS50...
For Vector Auto-cutter: Alys 20/30/60/120, VT2500 / VT5000 / VT7000 / Q25 / Q50 / Q80 / MP6 / MP9 / M88 / MH8 / FX
For Yin / Takatori Cutter / Bullmer / Kuris / Investronica / OROX
Consumable Material: Grind Stone & Strip, Blade, Bristle ,Ink Cartridge
All kinds of Garment Paper for CAD/CAM: plotter paper, underlayer paper,kraft paper,perforated kraft paper, vacuum overlayer film, packing tissue paper,duplex board etc.
1. Sample
We offer sample for consumables (blade, stone, bristle). Parts not offer sample but they guaranteed by After-sales service.
2. Delivery Time
Most of the normal items we have stock here and can ship at the same day received payment. When we make quotation to you, you can easily check the leading time for each item too.
